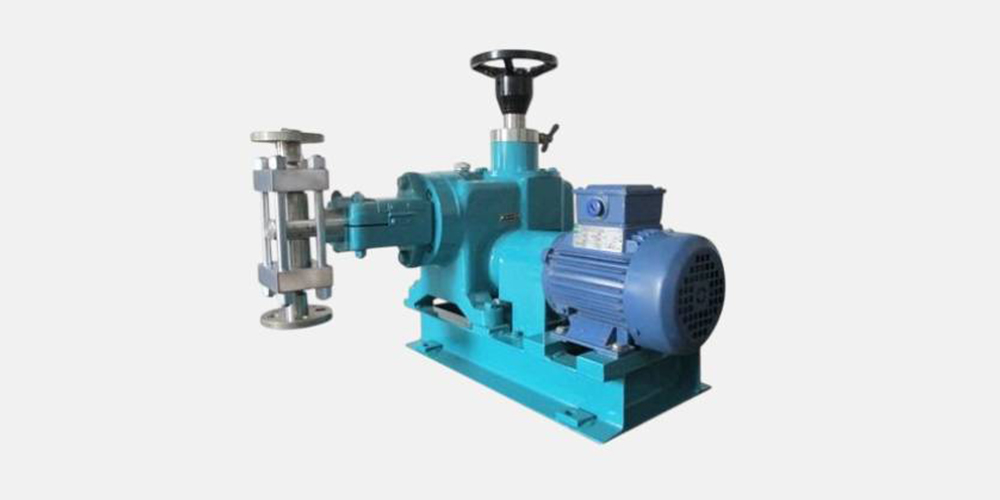

Plunger Type Dosing Pump

Home
Plunger Type Dosing Pump

Technically advanced range of Plunger Type Dosing Pumps is basically an industrial metering pump. It is also called a positive displacement pump and in each cycle of operation, these pumps displace a particular amount of fluid. The reciprocating motion of a plunger creates the pumping action. These follow the drive end mechanism and the liquid end mechanism to ensure flawless performance. These can be availed in simplex, duplex, and multiple heads for the proper flow of different chemicals. Our devices are engineered under the strict supervision of experienced quality controllers.

Features

Heating or cooling jackets for liquid head also available
Low NPSHR requirement
Flow metering accuracy is almost independent of back pressure of the liquid
Discharge flow rate is linear to aeration of stroke length
Single setting of stroke from 10% to 100% (turn down ratio 10:1)
Repeatability better than /-2.5% of set point
Easily handles corrosive, abrasive or viscous fluids

Model No	PRO 5011 / 5017 / 5030 / 5040
Pump Capacity	0 - 10,000 LPH
Discharge Pressure	0 - 400 Kg/cm²
M.O.C.	SS304 / SS316 / Alloy 20 / PP / PTFE / Hastelloy B/C

Applications

Chemical Processing Industries
Water & Wastewater Treatment Plants
Oil & Gas Industry
Pharmaceutical Industry
Power Plants (Boiler Chemical Dosing)
Petrochemical Plants
Fertilizer & Process Industries

The plunger type dosing pump works on a reciprocating motion, where the plunger moves back and forth inside the cylinder. This motion creates suction and discharge, allowing a fixed quantity of liquid to be delivered per cycle, ensuring accurate and controlled dosing.
